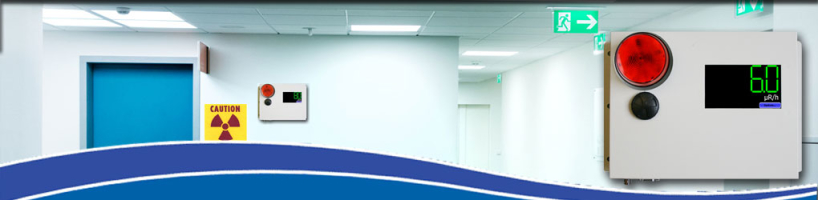

Radiation Alert® Area Monitor - Radiation Area Monitoring

Safe and reliable area monitoring for facilities and laboratories. Robust, flexible and user-friendly.

Radiation Alert® Area Monitor is one of the most user-friendly and modern radiation monitoring systems. Touch screen displays with large clear numbers and the user interface is easy to use.
The system has either internal or external detector and comes with software so you can control all area detectors in your network. Includes selectable warning indicators for high and low alarm of radiation, low alarm for battery, error alarm detector. Possibility of alarm via email or text message when on the go.

Download the Area Monitor data sheet

Detector Options
Internally Mounted Energy Compensated GM Detector
Externally Mounted Energy Compensated GM Detector
1X1 or 2X2 Externally Mounted Scintillation Detector

Range Options

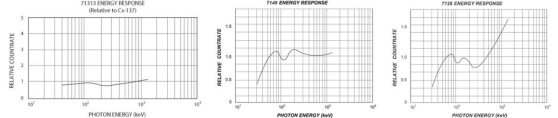

AM-7149: 0.2 - 16,000 mR/hr (2.0 - 160,000 µSv/hr) Using an Internally Mounted LND 7149 Energy Compensated GM Detector. External mounting also available.
AM-7128: 15 µR/hr – 200 mR/hr (0.2 - 2000 µSv/hr) Using an Internally Mounted LND 7128 Energy Compensated GM Detector. External mounting also available
AM-71313: 0.1 to 1500 mR/hr (0.5 - 15,000 µSv/hr) Using an Internally Mounted LND 71313 Energy Compensated GM Detector. External mounting also available
AM-1X1NAI: 1 µR/hr to 10 mR/hr (0 µSv/hr – 0.1 mSv/hr) Using an Externally Mounted 1X1 NaI(Tl) Scintillation Probe
AM-2X2NaI: 0.1 µR/hr to 2 mR/hr (0 – 20 µSv/hr) Using an Externally Mounted 2X2 Nal(Tl) Scintillation Probe
Custom Probe Options Available: Tell us about your application and we can recommend the best probe options for your needs.

Touch Screen Display
4.3 inch TFT 480x272 touch screen display with user friendly Programmable Units of Measurement and Audio and Visual Alarms. 5-digit LED display with 2.5 cm (1 in.) character height. 65K true colors capable of displaying full color images, animations, icons, and video clips

Display Units
Can display in R/hr, mR/hr, KR/hr, Sv/hr, mSv/hr, Sv/hr, cpm, Kcpm, cps, Kcps, and others

Linearity
NIST Calibrated readings within 10% of true value with detector connected

Response
Varies automatically from 20 seconds to 2 seconds

Indicators
Ultra-Bright Strobe and Audible Alarm
Can trigger up to three relays with DB-9 serial connection
USB VCP for computer data logging, can also be used to control the unit with use of remote software for alarm indication and acknowledgment (Silence by remote)

Ethernet
10 Base-T connection for use with remote software for alarm indication and acknowledgment (Silence by remote)

Calibration Controls
Functions accessible through touch screen push button under calibration cover enables secure access to changing settings

High Voltage
User adjustable from 200 to 1200 volts

Dead Time
User adjustable to compensate for dead time of the detector and electronics

Power
12 VDC wall mount adapter with two sets of international adapters for almost any style wall receptacle

Battery Life
Typically 5 hours in non-alarm condition; 6 hours in alarm condition

Battery Charger
SLA Battery is continuously trickle charged when the instrument is connected to line power and turned on

Construction
Easy mount steel enclosure

Temperature Range
10 to 60 °C (14 to 140 °F)

Size
16.2 x 26.6 x 5.3 cm (6.4 x 10.5 x 2.1 in.)

Includes
Management software for use with networked area monitors, Base Unit, Power Supply, Mounting Clips (External Versions Only), C to C Cable (External Versions Only).

Options
External Strobe and Horn, External Detector, NIST Calibration

Limited Warranty
1 year limited warranty
